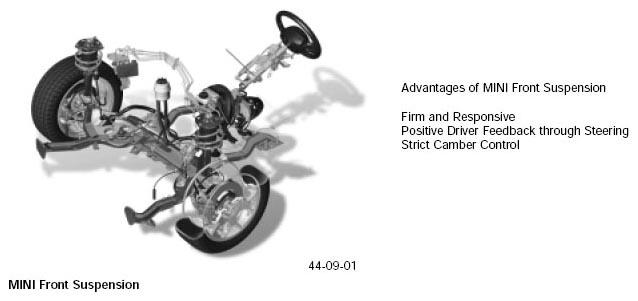

Front Suspension: Notes
The front suspension design features anti-dive and anti-squat geometry via the anti-roll bar and 1:1 strut movement ratio. The layout of the design minimizes camber loss due to side forces, thus improving handling and steering response.
The front suspension consists of the following main components:
- Front Subframe
- Lower Control Arms
- Anti-Roll Bar and Links
- McPherson Struts
- Front Shocks
- Front Springs
- Front Top Mount
- Front Hubs
