Evaporative System Tester (M04 05 06)

Publication date: 2006-05-01
Reference number: M04 05 06

EVAPORATIVE SYSTEM TESTER

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 05 06, Date of Issue: May 2006

MINI:	R50, R52, R53
GROUP:	Tools and Equipment

SUBJECT

Evaporative System Tester

MODEL

R50, R52, R53

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

TOOL INFORMATION

Evaporative System Leak Test Tool

PN 83 30 0 494 501

Cartool # 161 170

Used to test for leaks in the vehicle's evaporative system. It is used in conjunction with the 25 bar pressure sensor cable and an ultrasonic leak detector (available through the Equipment program 1 888 222 7997). The Repair instructions for this tool and vehicle are currently not correct. They will be corrected with the June repair manual update. Contact the Technical Hotline for operational questions.

Illustration Key:

(1) Pressure control valve
(2) & (3) Quick coupling adapters.

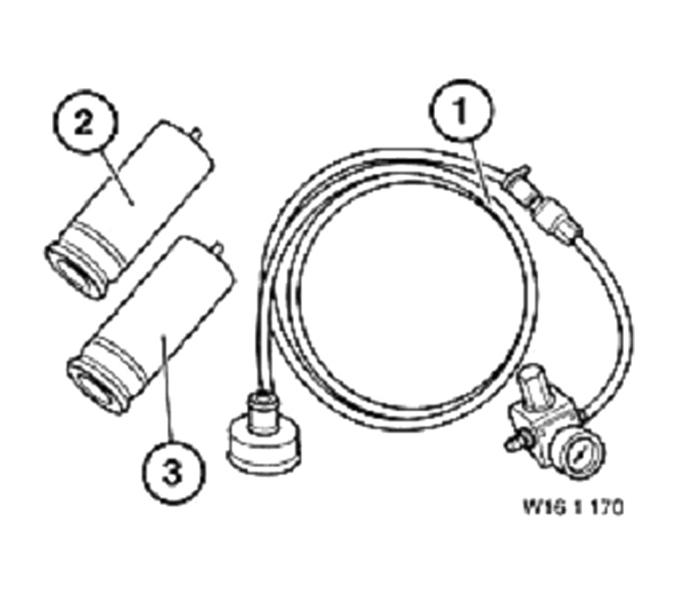

Fig 1: Evaporative System Leak Test Tool

NOTE: The repair manual calls for the 3.5 bar pressure sensor cable. This is incorrect. Use the 25 bar pressure sensor. When a pressure sensor cable is attached to the tester and opened to atmosphere it will read absolute pressure (~1 bar). This is normal. Subtract 1 bar from your final reading to obtain relative pressure. Always visually inspect the gas cap gasket for rips, tears, hardening or dents.

Tank Ventilation Leak Couplers

P/N 83 30 0 493 152

Cartool # 161 160

Consists of:

83 30 0 493 153 (161 161 Cartool) - Fixture for leak diagnosis pump air filter

83 30 0 493 154 (161 162 Cartool) - Fixture (2) for the scavenging air pipe from the tank ventilation valve.

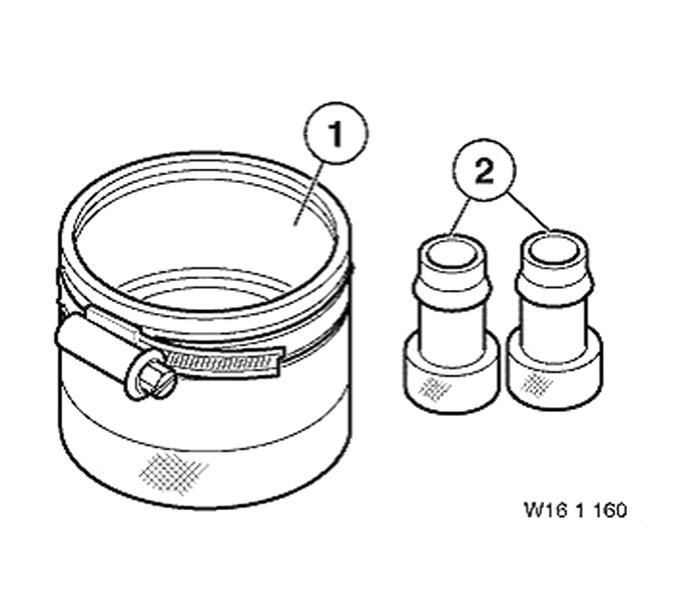

Fig 2: Tank Ventilation Leak Couplers
