New Engine Support Part Numbers (M04 03 09)
Publication date: 2009-04-16Reference number: M04 03 09
NEW ENGINE SUPPORT PART NUMBERS
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI M04 03 09, Date of Issue:
April 16, 2009
| MINI: | All |
| GROUP: | Tools and Equipment |
SUBJECT
New Engine Support Part Numbers
INFORMATION
Due to a lack of additional part numbers, engine support Part Number (P/N) 000 200 (83 30 0 490 075) and all of its associated adapters have been renumbered. Refer to the table below for the P/N conversions and the repair manual(s) for vehicle applications. Tools on this Service Information will not be distributed via the Automatic Tool Shipment program. The tools may be purchased from the Regional Distribution Center. Some tools may require a lead time for delivery.
PART NUMBER CONVERSION
| Old Cartool P/N | New Cartool P/N | New Order Number |
|---|---|---|
| 000 200 | N/A | N/A |
| N/A | 006 000 | 83 30 0 496 413 |
| 000 201 | 006 001 | 83 30 0 496 414 |
| 000 202 | 006 002 | 83 30 0 496 415 |
| 000 203 | 006 003 | 83 30 0 496 416 |
| 000 204 | 006 004 | 83 30 0 496 417 |
| 000 205 | 006 005 | 83 30 0 496 418 |
| 000 209 | 006 006 | 83 30 0 496 419 |
| 000 490 | N/A | 83 30 0 495 904 |

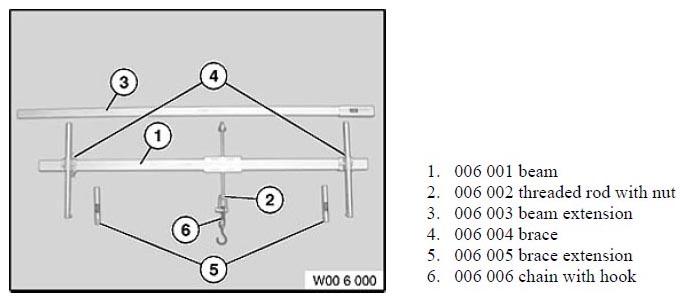

Support Fixture
Order P/N 83 30 0 496 413
Cartool 006 000
This fixture is comprised of the following P/Ns.
- 1. 006 001 beam
- 2. 006 002 threaded rod with nut
- 3. 006 003 beam extension
- 4. 006 004 brace
- 5. 006 005 brace extension
- 6. 006 006 chain with hook

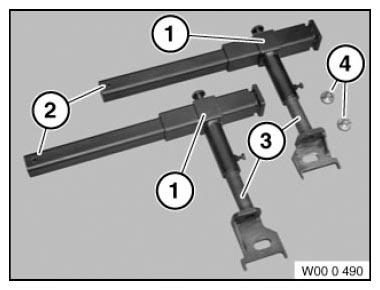

Bracket Tool (2)
Order P/N 83 30 0 495 904
Cartool PN 00 0 490
Consisting of:
- 1. 00 0 491 Basic Body
- 2. 00 0 492 Sectional Tube
- 3. 00 0 493 Bracket
- 4. 00 0 494 Knurled nut (2x)
