MINI SPECIAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 02 05, Date of Issue: June 2005

MINI:	R50, R52 with GS5-52BG Transmission
GROUP:	Tools and Equipment

SUBJECT

MINI Special Tools

MODEL

R50, R52 with GS5-52BG Transmission

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Seal Installer

PN 90 88 0 230 350

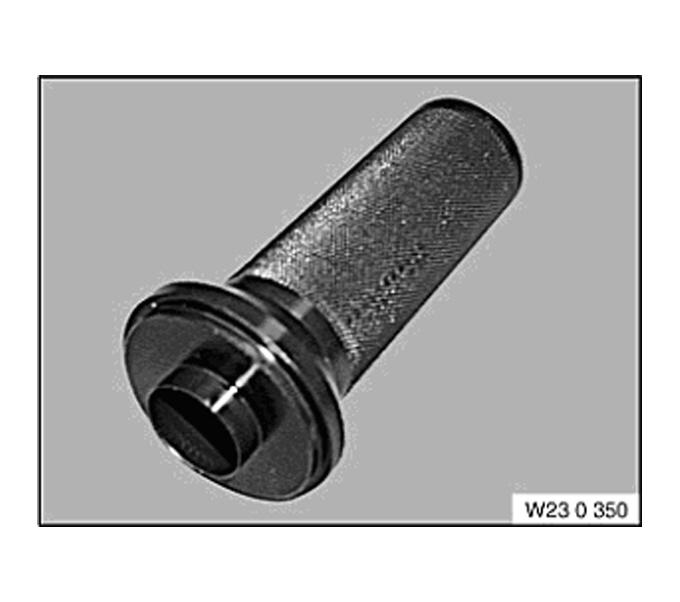

Fig 1: Input Shaft Seal Installer

Used on the GS5-52BG 5-speed manual transmission to install the input shaft seal. Refer to Repair Manual Section 23 12 509.

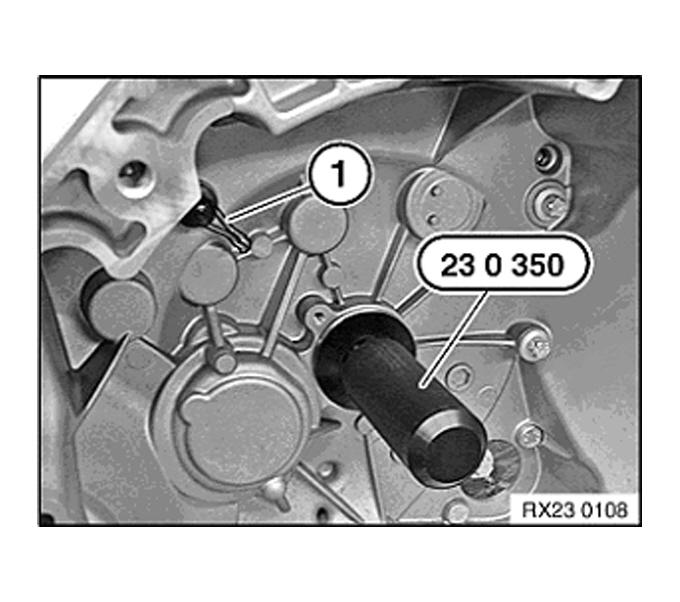

Fig 2: Installing Input Shaft Seal

Seal Installer

PN 90 88 0 230 360

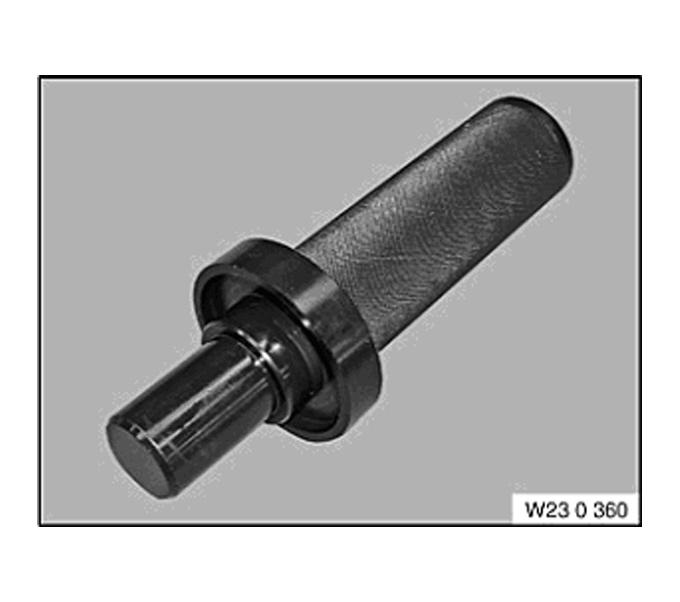

Fig 3: Output Shaft Seal Installer

Used on the GS5-52BG 5-speed manual transmission to install the output shaft seals (left and right differential). Refer to Repair Manual Section 23 11 201.

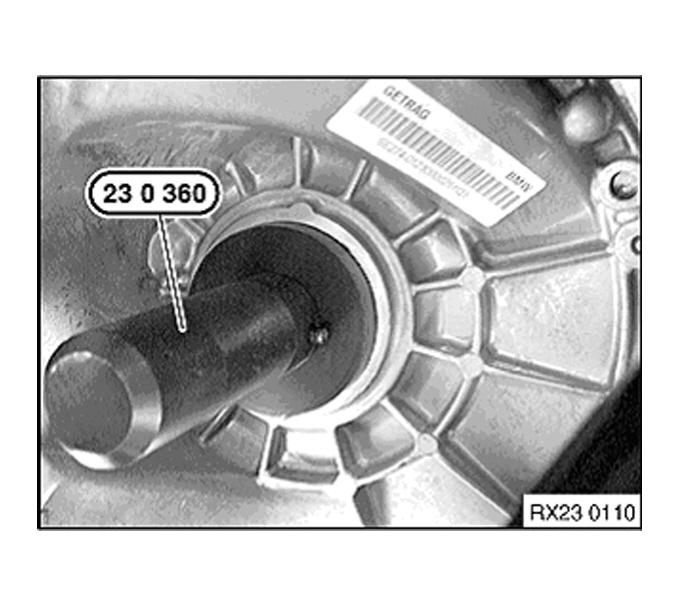

Fig 4: Installing Output Shaft Seal
