ANTENNA TEST CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 04 16, Date of Issue: April 2016

MINI:	All
GROUP:	Tools and Equipment

SUBJECT

Antenna Test Cables

SITUATION

Distribution of the following Test Cables will be through the Automatic Tool Shipment Program. Additional Test Cables may be purchased through your PDC.

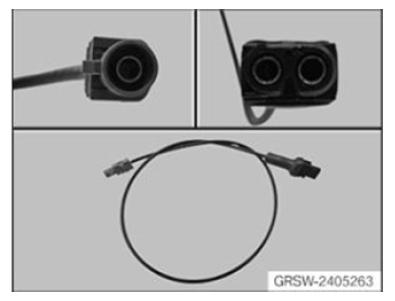

Antenna Test Cable

Order P/N 83 30 2 405 263

This 2-Pin test cable is used to check the antenna line.
For complete information on this test cable refer to the Diagnostic test plan.

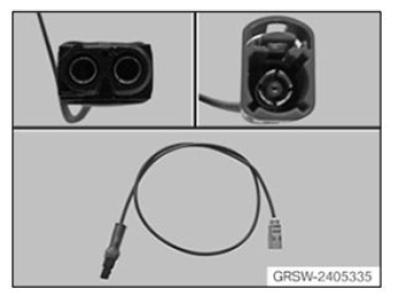

Antenna Port Test Cable

Order P/N 83 30 2 405 335

This 2-Pin test cable is used to check the antenna port on the Head Unit.
For complete information on this test cable refer to the Diagnostic test plan.

SPECIAL TOOL WARRANTY

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:

Go to TIS.
Select "Tools and Equipment."
Select "Special Tool Parts Warranty."
