Tool For Setting Hood Into Service Position (M04 03 13)

Publication date: 2013-12-01
Reference number: M04 03 13

TOOL FOR SETTING HOOD INTO SERVICE POSITION

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 03 13, Date of Issue: December, 2013

MINI:	R50, R52, R53
GROUP:	Tools and Equipment

SUBJECT

Tool for Setting Hood into Service Position

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your RDC.

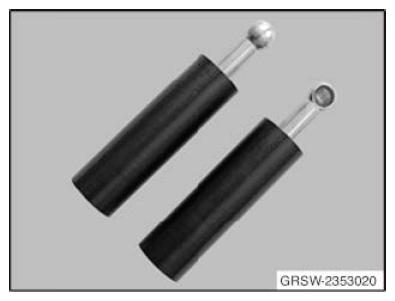

Support Device

Order PN: 83 30 2 353 020

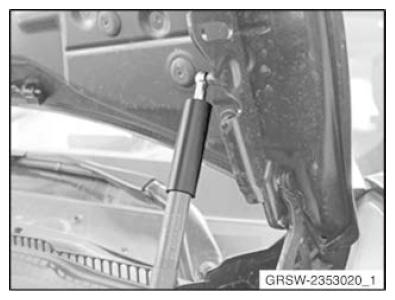

The support tool is used to fix the engine hood in the service position during engine repairs. Make sure the ball socket on the support tool has fully engaged the support ball on the engine hood.

For complete repair information on this tool, refer to ISTA Repair Manual section 51 00 "Service position of engine compartment lid".
