Selector Shaft Seal Tools (M04 06 04)

Publication date: 2004-11-01
Reference number: M04 06 04

SELECTOR SHAFT SEAL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 06 04, Date of Issue: November 2004

MINI:	R50, R52 CVT
GROUP:	Tools and Equipment

Selector Shaft Seal Tools

R50, R52 CVT

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

Seal Extractor

PN 90 88 0 245 410

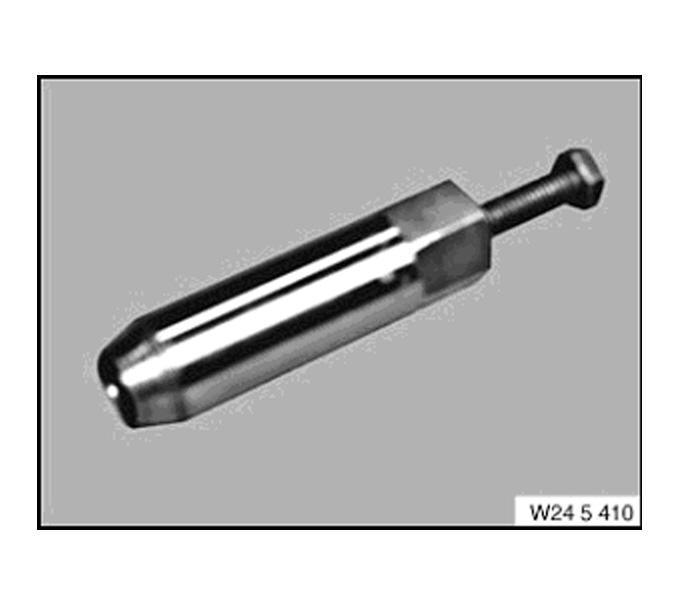

Fig 1: Seal Extractor

Used to remove the selector shaft seal. Refer to repair manual section 24 500 01.

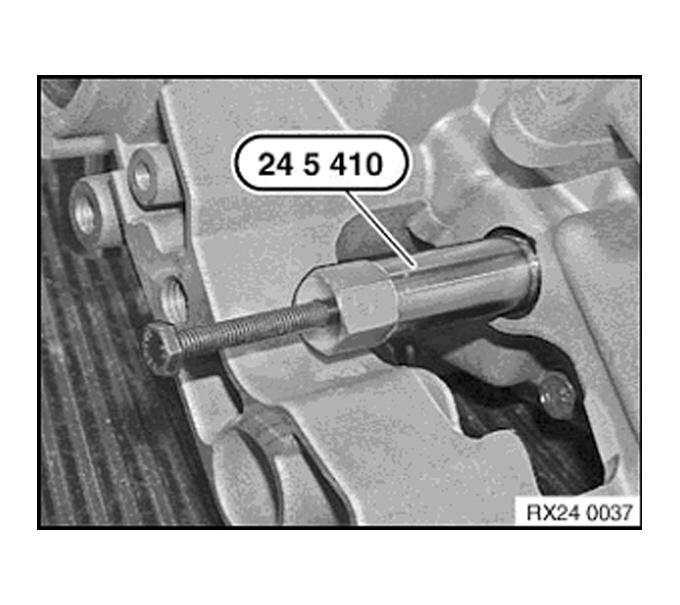

Fig 2: Removing Selector Shaft Seal

Seal Installer

PN 90 88 0 245 420

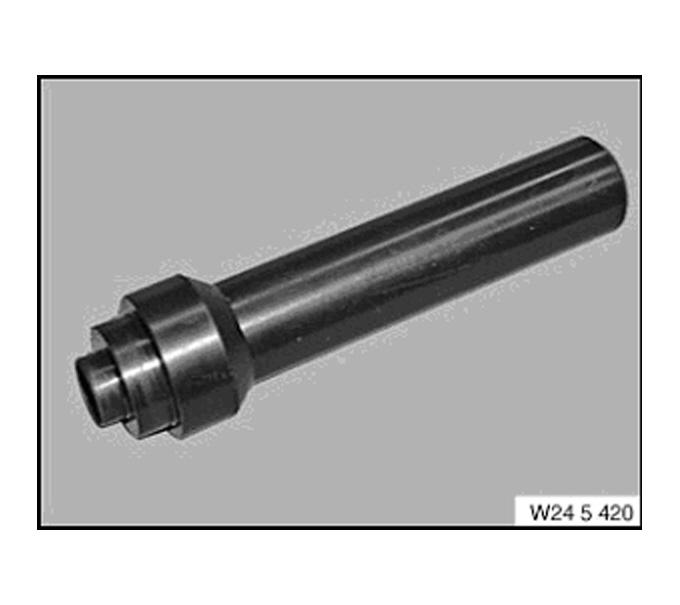

Fig 3: Seal Installer

Used to install the selector shaft seal. Refer to repair manual section 24 500 01.

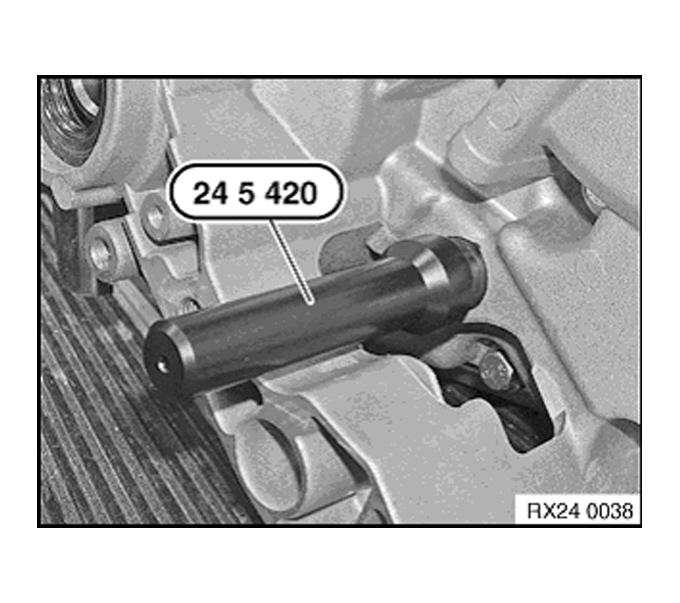

Fig 4: Installing Selector Shaft Seal

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
