Merkur XR4Ti

For speedometer/odometer testing flow chart, See Fig 1 .

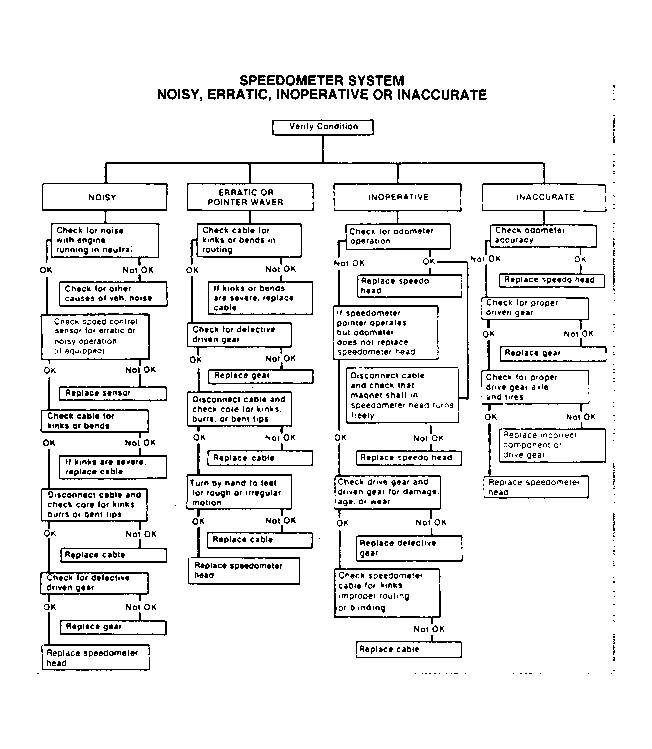

Fig 1: Merkur XR4Ti Testing of Speedometer/Odometer Assembly

G64934

Courtesy of FORD MOTOR CO.
