Transaxle Control Module Connector End View - C1458C

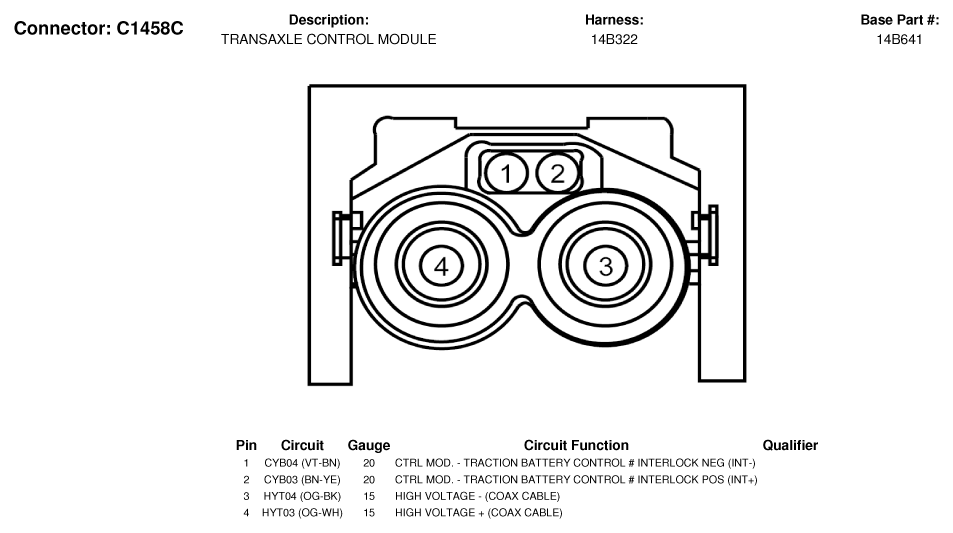

Fig 1: Transaxle Control Module Connector End View (C1458C)

G07329539

Courtesy of FORD MOTOR CO.
