Transaxle Control Module Connector End View - C1458B

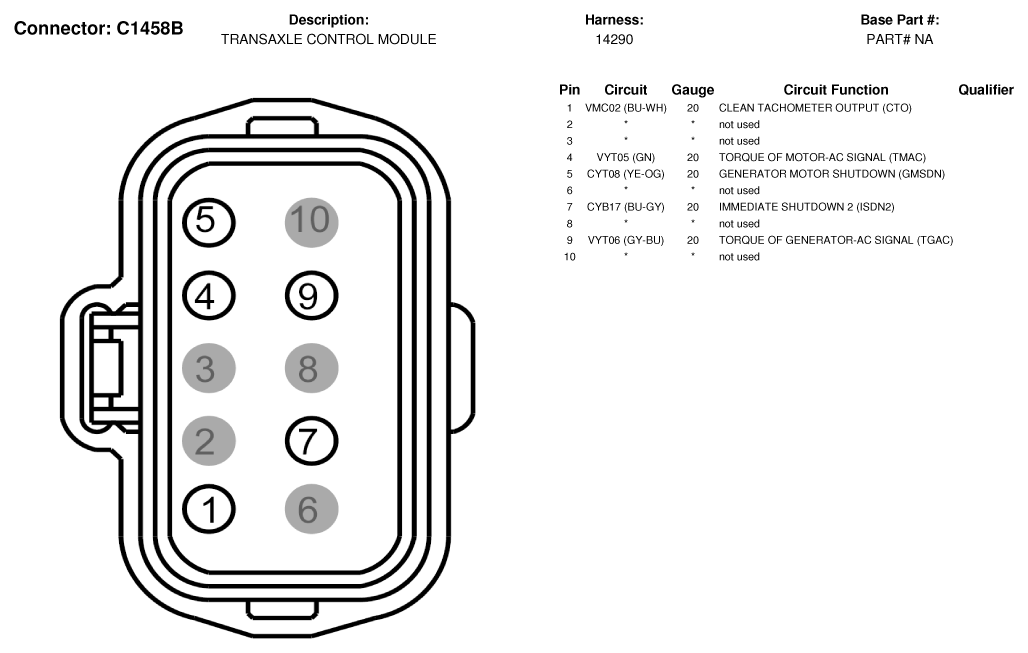

Fig 1: Transaxle Control Module Connector End View (C1458B)

G07329538

Courtesy of FORD MOTOR CO.
