Transaxle Control Module Connector End View - C1458A

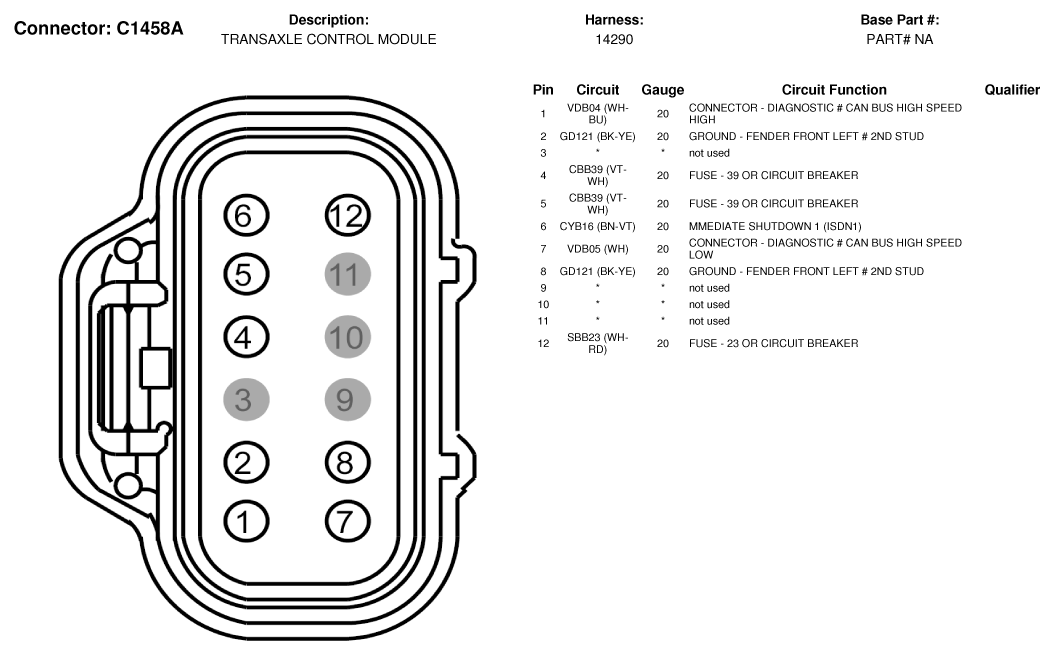

Fig 1: Transaxle Control Module Connector End View (C1458A)

G07329537

Courtesy of FORD MOTOR CO.
