Vehicle Speed Sensor (VSS): Material

Item Specification
SAE 75W-90 API GL-4 Gear Oil
XT-4-QGL		 WSS-M2C203-A1

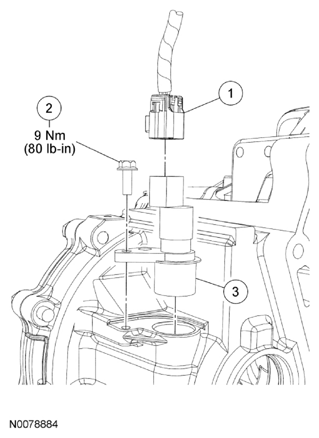

Fig 1: Vehicle Speed Sensor Replacement Components With Torque Specifications
G07786562Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14487 Vehicle Speed Sensor (VSS) electrical connector
2 - VSS bolt
3 17271 VSS
