Input Shaft: Material

Item	Specification
SAE 75W-90 API GL-4 Gear Oil XT-4-QGL	WSS-M2C203-A1

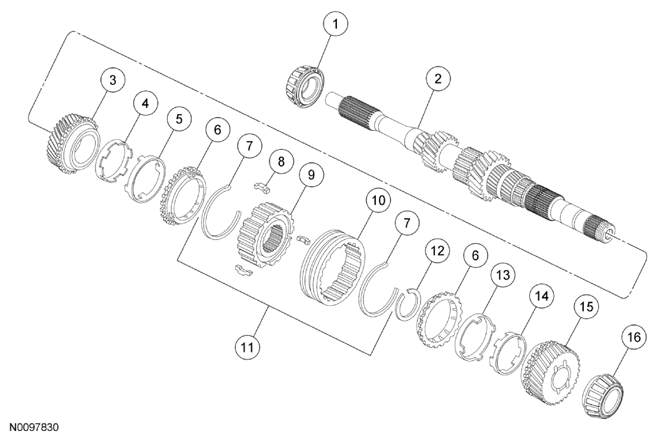

Fig 1: Exploded View Of Input Shaft Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7025	Bearing
2	7017	Input shaft
3	7101	3rd gear
4	-	Double cone (part of 7Z018)
5	-	Inner cone (part of 7Z018)
6	7Z018	Synchronizer blocking ring (part of blocking ring set)
7	7109	Synchronizer blocking springs (part of 7124)
8	7A044	Synchronizer hub insert (part of 7124)
9	7105	Synchronizer hub (part of 7124)
10	7106	Synchronizer sleeve (part of 7124)
11	7124	Synchronizer hub assembly
12	7064	Snap ring
13	-	Double cone (part of 7Z018)
14	-	Inner cone (part of 7Z018)
15	7110	4th gear
16	7025	Bearing
