Solenoid Body
WARNING: This page is about a different variant/trim than selected.

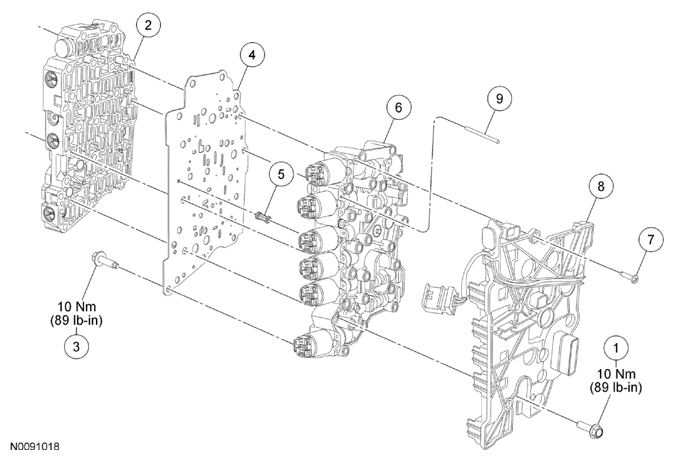

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W500303 | Solenoid body-to-valve body bolt |
| 2 | 7A100 | Main control valve body |
| 3 | N605770 | Solenoid body-to-valve body separator plate bolt (2 required) |
| 4 | 7Z490 | Solenoid body-to-valve body separator plate |
| 5 | 7K221 | Circuit filter |
| 6 | 7G391 | Solenoid body |
| 7 | W505513 | Leadframe screw (5 required) |
| 8 | 7G276 | Leadframe |
| 9 | 7H111 | Solenoid retaining pin (14 required) |
| 10 | 7J187 | Direct (3, 5, R) clutch latch valve |
| 11 | 7J187 | Intermediate (2, 6) clutch latch valve |
| 12 | 7J187 | Low reverse/overdrive (4, 5, 6) clutch latch valve |
| 13 | 7G383 | Line Pressure Control (LPC) solenoid |
| 14 | 7G136 | Shift Solenoid C (SSC) |
| 15 | 7G136 | Torque Converter Clutch (TCC) solenoid |
| 16 | 7G484 | Shift Solenoid E (SSE) ON/OFF solenoid |
| 17 | 7G136 | Shift Solenoid A (SSA) |
| 18 | 7G383 | Shift Solenoid B (SSB) |
| 19 | 7G383 | Shift Solenoid D (SSD) |
