Main Control Valve Body: Assembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new valve body.

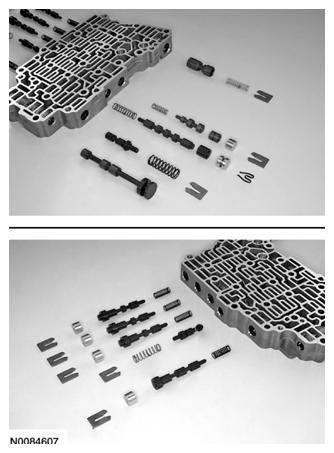

    Fig 1: Identifying Valve Body Valves, Springs And Retaining Clips
    G07783256Courtesy of FORD MOTOR CO.
  1. Install the valve body valves, springs and retaining clips in the main control valve body. See Figure the Valve Body illustration at the beginning of this procedure for valve and spring locations.
  2. Install the manual valve in the valve body.

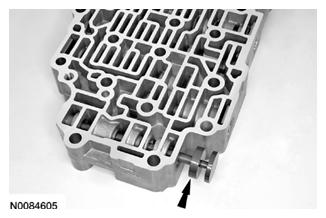

    Fig 2: Locating Manual Valve
    G07783257Courtesy of FORD MOTOR CO.
  3. Install the 3 check balls and the damper.
    1. Check balls
    2. Solenoid damper

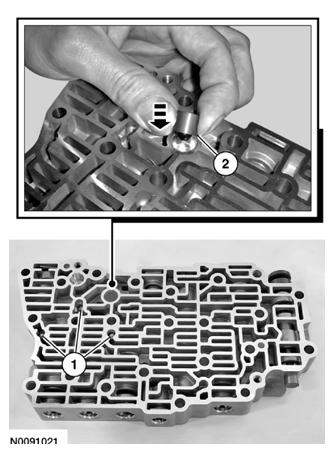

      Fig 3: Installing Solenoid Damper
      G07783258Courtesy of FORD MOTOR CO.
  4. Install the new separator plate and the 2 separator bolts.
    • Tighten to 10 Nm (89 lb-in).

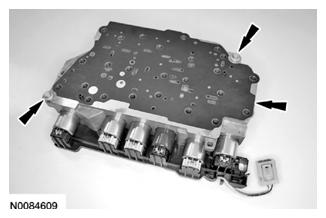

      Fig 4: Locating Separator Plate And Bolts
      G07783259Courtesy of FORD MOTOR CO.
  5. For disassembly and assembly of the solenoid body, refer to SOLENOID BODY ASSEMBLY  in this service information.
  6. Position the solenoid body assembly on the valve body and install the 2 bolts.
    • Tighten to 10 Nm (89 lb-in).

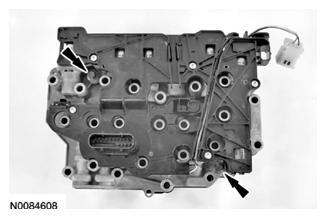

      Fig 5: Locating Solenoid Body Assembly Bolts
      G07783260Courtesy of FORD MOTOR CO.
