Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

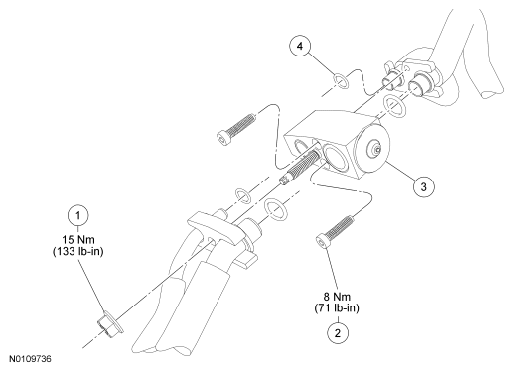

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Auxiliary Thermostatic Expansion Valve (TXV) fitting nut |
| 2 | - | Auxiliary TXV bolt (part of 19849 kit) (2 required) |
| 3 | 19849 | Auxiliary TXV |
| 4 | 19E889 | O-ring seal (4 required) |
