Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

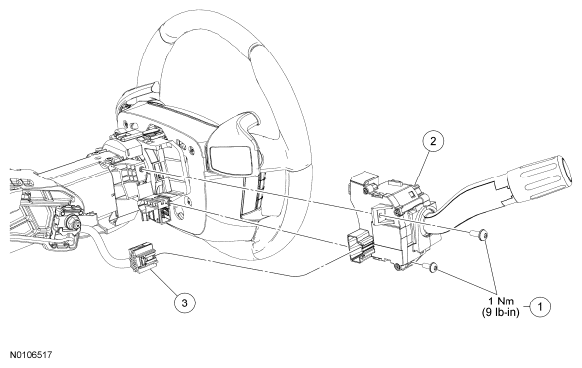

Fig 1: Exploded View Of Steering Column Multifunction Switch With Torque Specifications
G06280810Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W504694 Multifunction switch screws (2 required)
2 13K359 Multifunction switch
3 - Multifunction switch electrical connector (part of 14401)
