Start/Stop Switch: Notes

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

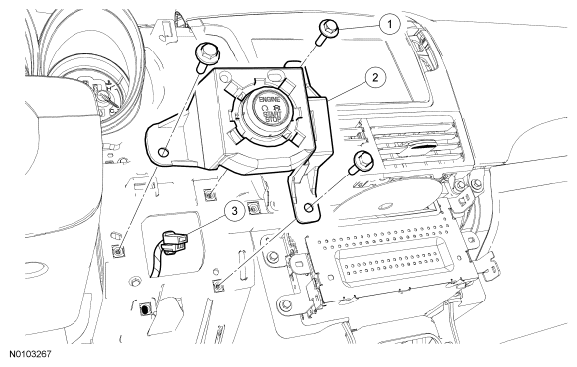

Fig 1: Identifying Start/Stop Switch, Start/Stop Switch Electrical Connector And Start/Stop Switch Bolt
G06280812Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Start/stop switch bolt (3 required)
2 12A386 Start/stop switch
3 - Start/stop switch electrical connector (part of 14401)
