Differential Seals - RH: Installation
WARNING: This page is about a different variant/trim than selected.

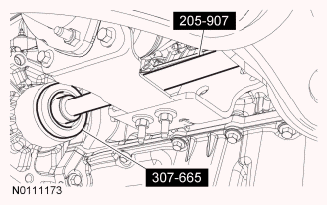

- Using the Differential Seal RH and LH Installer (two sided tool eCVT) and Driver 32 Inch Handle, install the RH differential seal.
- Install the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS article.

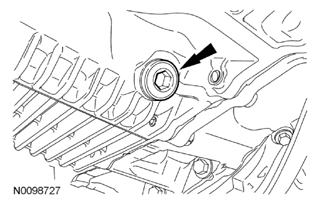

- Clean the drain plug threads and install the drain plug.
- Tighten to 40 Nm (30 lb-ft).
- Remove the fill plug on the side of the transaxle.
- Fill the transaxle with clean transmission fluid as specified until the level reaches the bottom of the fill plug hole.
- Install the fill plug.
- Tighten to 40 Nm (30 lb-ft).
- Start the engine and check for correct forward and reverse operation.
- Install the underbody cover and 7 screws.
NOTE:
Inspect the plug and washer for damage and install a new plug if necessary.
NOTE:
Clean the area around the fill plug removing transmission fluid that may have spilled on the transaxle case.
NOTE:
Inspect the plug and washer for damage and install a new plug if necessary.
NOTE:
The check and fill plug is located on the left side of the transaxle near the front.
NOTE:
The transmission fluid is checked and filled by removing the fill plug and adding transmission fluid to the bottom of the fill plug hole.
