Blower Motor Resistor: Notes

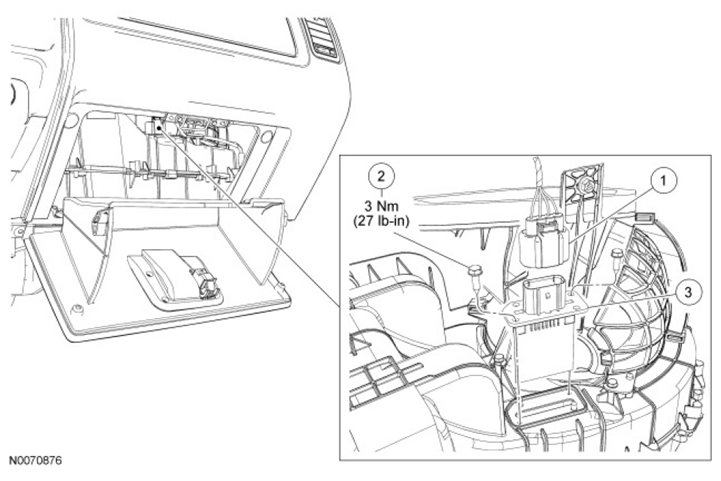

Fig 1: Blower Motor Resistor Replacement Components With Torque Specifications
G07440234Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Blower motor resistor electrical connector (part of 19D887)
2 W701696 Blower motor resistor screw (2 required)
3 18591 Blower motor resistor
