Accelerator Pedal - Fixed: Notes

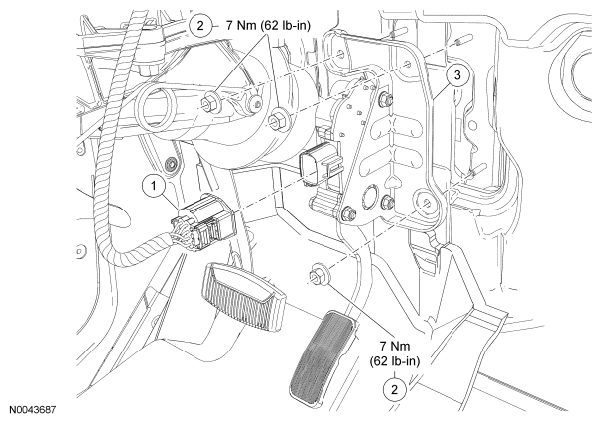

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
G06402688Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Accelerator pedal electrical connector (part of 14401)
2 90907 Accelerator pedal assembly nuts (3 required)
3 9F836 Accelerator pedal assembly
