In-Vehicle Repair: Solenoids: Installation

Inspect the solenoid(s) for damage.

Fig 1: Locating Solenoid
Courtesy of FORD MOTOR CO.
If a new solenoid is not being installed, install the solenoid(s) into the bore from which it was removed.

If installing a new Variable Force Solenoid (VFS), determine the base part number of the solenoid(s). The Torque Converter Clutch (TCC) solenoid, Shift Solenoid A (SSA) and Shift Solenoid C (SSC) are all normally low pressure solenoids. The Line Pressure Control (LPC) solenoid, Shift Solenoid B (SSB) and Shift Solenoid D (SSD) are all normally high pressure solenoids. Shift Solenoid E (SSE) is not a VFS , it is an ON/OFF solenoid.

Fig 2: Identifying Solenoid

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7G136	SSA (normally low)
2	7G383	SSB (normally high)
3	7G136	SSC (normally low)
4	7G383	SSD (normally high)
5	7G484	SSE (normally closed [OFF])
6	7G136	TCC solenoid (normally low)
7	7G383	LPC solenoid (normally high)

Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is the third digit on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Use the following table to determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid.

SOLENOID BAND NUMBER CHART

Solenoid Band Number	Part Number Suffix
1	B
2	C
3	D
4	E
5	F

Fig 3: Identifying Solenoid Service Band Number

Courtesy of FORD MOTOR CO.

Install the Leadframe Guide Pins in the solenoid body to align the lead frame for installation.

Fig 4: Identifying Leadframe Guide Pins
Courtesy of FORD MOTOR CO.
Position the leadframe on the Leadframe Guide Pins and carefully install the leadframe by pushing straight down into the solenoids.
Remove the Leadframe Guide Pins.

Fig 5: Identifying Leadframe Guide Pins
Courtesy of FORD MOTOR CO.
Install the 5 leadframe screws.

Fig 6: Locating Leadframe Screws
Courtesy of FORD MOTOR CO.
Connect the OSS sensor electrical connector.

Fig 7: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

Fig 8: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control cover grommet.

Fig 9: Locating Main Control Cover Grommet
Courtesy of FORD MOTOR CO.
Clean the main control cover sealing surface and inspect for damage.

Fig 10: Locating Main Control Cover Sealing Surface
Courtesy of FORD MOTOR CO.
Apply silicone to the main control sealing surface of the transaxle case.

Fig 11: Applying Silicone To Main Control Sealing Surface Of Transaxle Case
Courtesy of FORD MOTOR CO.
Position the main control cover in place.

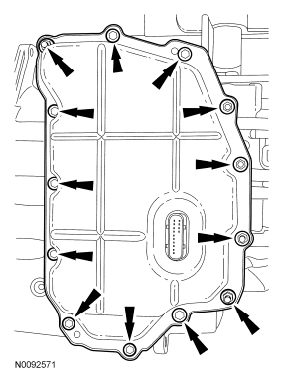

Fig 12: Locating Main Control Cover
Courtesy of FORD MOTOR CO.
NOTE: Inspect the main control cover grommet to make sure that the seal is on the inside of the main control cover, or a transmission fluid leak will occur.

NOTE: Install the stud bolts in the locations noted during disassembly.

Tighten the 8 main control cover bolts and 5 stud bolts.
- Tighten to 12 Nm (106 lb-in).

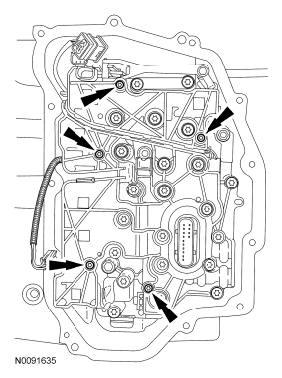

Fig 13: Locating Bolts, Stud Bolts And Main Control Cover
Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
- Tighten to 9 Nm (80 lb-in).
Fig 14: Positioning Transmission Fluid Cooler Tube Bracket
Courtesy of FORD MOTOR CO.

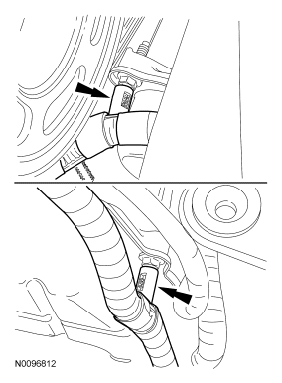

Connect the transaxle electrical wiring harness retainers to the main control cover stud bolts.

Fig 15: Locating Transaxle Electrical Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Connect the transaxle electrical connector.

Fig 16: Locating Transaxle Electrical Connector
Courtesy of FORD MOTOR CO.
Install the ACL assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.5L or INTAKE AIR DISTRIBUTION & FILTERING - 3.0L (4V) .
Install the underbody cover and the screws.

Fig 17: Locating Underbody Cover And Screws
Courtesy of FORD MOTOR CO.
Fill the transaxle with clean transmission fluid.

Fig 18: Locating Transmission Fluid Level Indicator
Courtesy of FORD MOTOR CO.
Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
