Major Components
This transaxle has the following major components:
- Case with torque converter housing
- Two drive clutches:
- Direct clutch
- Overdrive (O/D) clutch
- Four brake clutches:
- Forward clutch
- Low one-way clutch
- Low/reverse clutch
- Intermediate clutch
- Three planetary gearsets:
- Front
- Center
- Rear
- Drive chain and sprockets
- Final drive planetary gearset and differential assembly
- Pump and filter assembly
- Main control:
- Valve body assembly
- Solenoid body assembly

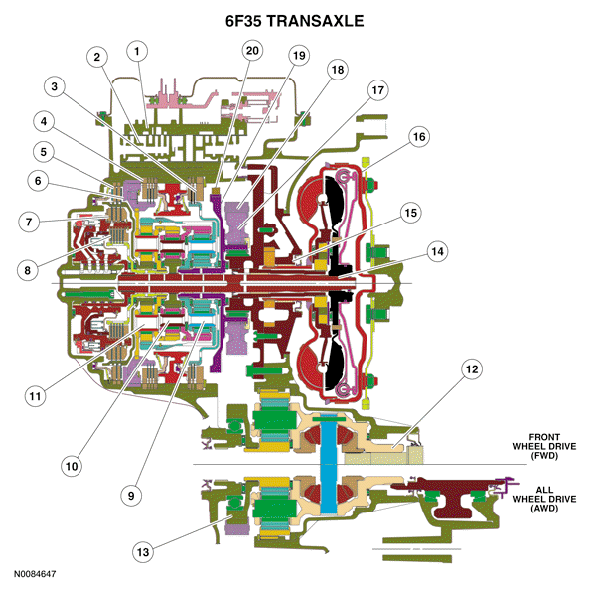

Major Component Cutaway View

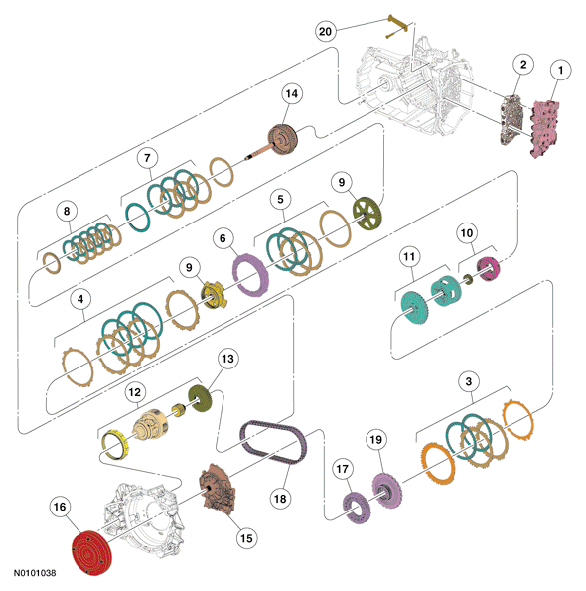

Major Component Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G391 | Solenoid body |
| 2 | 7A100 | Valve body |
| 3 | 7B164 | Forward clutch (clutch brake 1, 2, 3, 4) |
| 4 | 7B164 | Low/reverse clutch (clutch brake low/reverse) |
| 5 | 7B164 | Intermediate clutch (clutch brake 2, 6) |
| 6 | 7A089 | Low One-Way Clutch (OWC) |
| 7 | 7B164 | Direct clutch (drive clutch 3, 5, R) |
| 8 | 7B164 | Overdrive (O/D) clutch (drive clutch 4, 5, 6) |
| 9 | 7D491 | Rear planetary assembly |
| 10 | 7D491 | Center planetary assembly |
| 11 | 7D491 | Front planetary assembly |
| 12 | 7F465 | Final drive carrier and differential assembly |
| 13 | 7G132 | Drive chain driven sprocket |
| 14 | 7G384 | Input shaft assembly and direct/overdrive clutch hub |
| 15 | 7A103 | Pump assembly |
| 16 | 7975 | Torque converter |
| 17 | 7G132 | Drive chain drive sprocket |
| 18 | 7G249 | Drive chain |
| 19 | 7060 | Park gear |
| 20 | 7A441 | Park pawl |
