Main Control
The hydraulic system has a main control assembly. The main control assembly consists of a valve body and a solenoid body. Both the valve body and the solenoid body contain hydraulic shift valves. The solenoid body contains the shift solenoids that control the hydraulic valves. The solenoid body can be serviced as an assembly with the solenoids or the solenoids can be serviced individually. The solenoid body is controlled by the PCM. The PCM has software stored in it specific to the solenoid body currently in the transaxle, called the solenoid body strategy. A new solenoid body strategy must be downloaded into the PCM anytime a new solenoid body is installed.
The pump assembly contains the main pressure regulator valve assembly and the Torque Converter Clutch (TCC) control valve assembly.

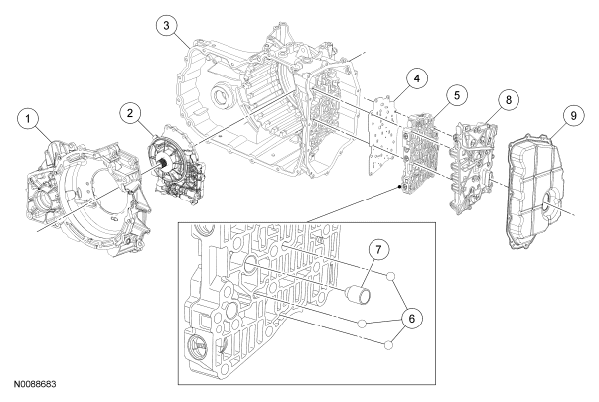

Main Control Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 7975 | Torque converter housing |
| 2 | 7A103 | Pump assembly |
| 3 | 7005 | Transaxle case |
| 4 | 7Z490 | Main control-to-transaxle case separator plate |
| 5 | 7A100 | Valve body |
| 6 | 7E195 | Check balls |
| 7 | 7J191 | Solenoid damper (Shift Solenoid A (SSA)) |
| 8 | 7G391 | Solenoid body assembly |
| 9 | 7G004 | Main control cover |

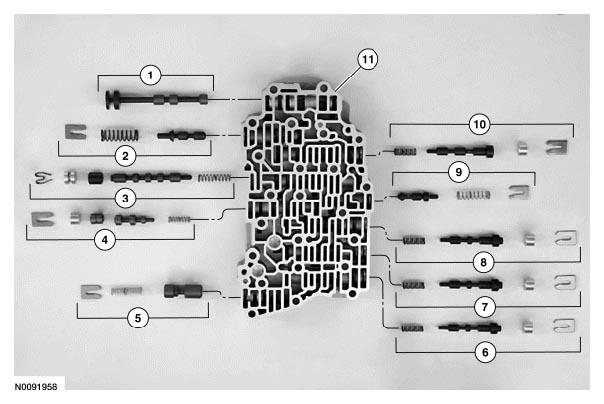

Main Control Valve Body
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C389 | Manual valve |
| 2 | 7G473 | Solenoid pressure regulator valve assembly |
| 3 | 7G179 | Clutch bypass valve |
| 4 | 7G307 | Torque Converter Clutch (TCC) regulator valve |
| 5 | 7B200 | Control pressure regulator |
| 6 | 7D102 | Direct (3, 5, R) clutch regulator valve |
| 7 | 7D102 | Intermediate (2, 6) clutch regulator valve |
| 8 | 7D102 | Forward (1, 2, 3, 4) clutch regulator valve |
| 9 | 7J187 | Forward (1, 2, 3, 4) clutch latch valve |
| 10 | 7D102 | Low reverse/overdrive (4, 5, 6) clutch regulator valve |
| 11 | 7A100 | Valve body |

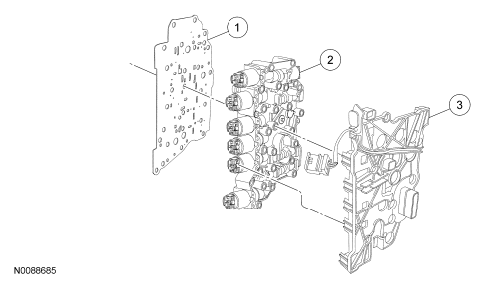

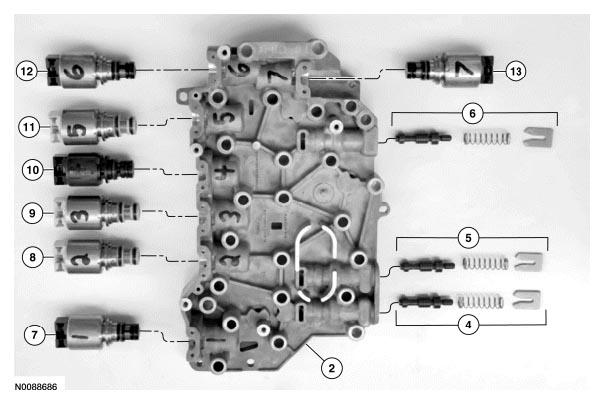

Solenoid Body
| Item | Part Number | Description |
|---|---|---|
| 1 | 7Z490 | Main control valve body-to-solenoid body separator plate |
| 2 | 7G391 | Solenoid body |
| 3 | 7G276 | Solenoid body leadframe |
| 4 | 7J187 | Direct (3, 5, R) clutch latch valve |
| 5 | 7J187 | Intermediate (2, 6) clutch latch valve |
| 6 | 7J187 | Low reverse/overdrive (4, 5, 6) clutch latch valve |
| 7 | 7G383 | Line Pressure Control (LPC) solenoid |
| 8 | 7G136 | Shift Solenoid C (SSC) |
| 9 | 7G136 | Torque Converter Clutch (TCC) |
| 10 | 7G484 | ON/OFF solenoid |
| 11 | 7G136 | Shift Solenoid A (SSA) |
| 12 | 7G383 | Shift Solenoid B (SSB) |
| 13 | 7G383 | Shift Solenoid D (SSD) |

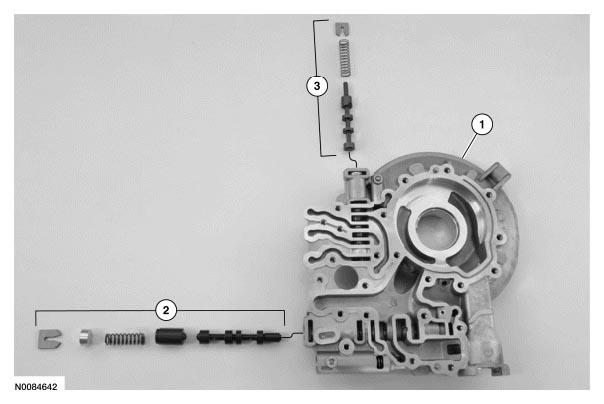

Pump Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A103 | Pump assembly |
| 2 | - | Main pressure regulator valve assembly |
| 3 | - | Torque Converter Clutch (TCC) control valve assembly |
