Inline Connector End View - C212

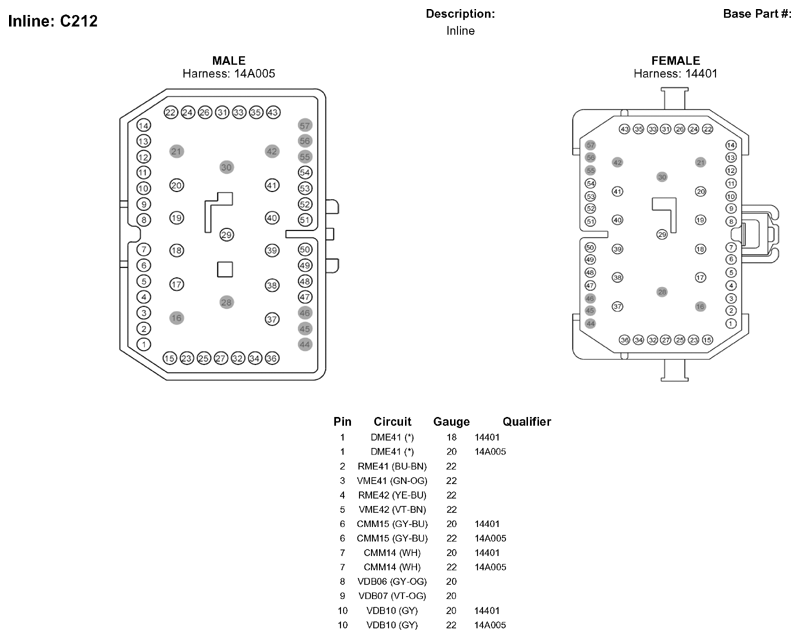

Fig 1: Inline Connector End View (C212) (1 Of 2)

G05789950

Courtesy of FORD MOTOR CO.

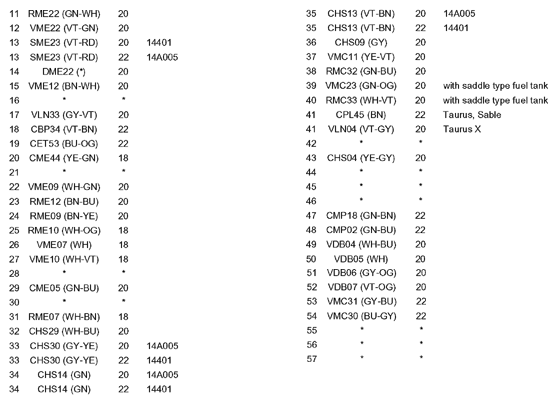

Fig 2: Inline Connector End View (C212) (2 Of 2)

G05789951

Courtesy of FORD MOTOR CO.
