Throttle Body - Spacer: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

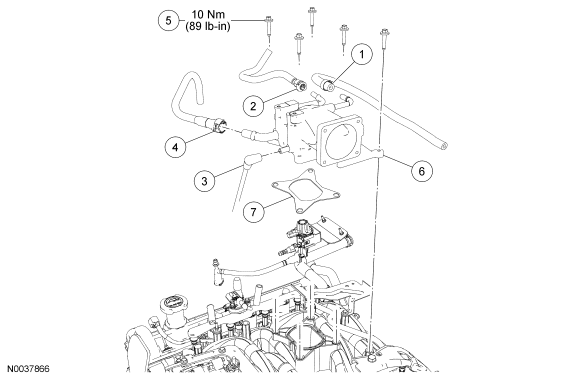

Fig 1: Exploded View Of Throttle Body Spacer With Torque Specifications
GF0013743Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C490 Brake booster vacuum hose
2 9D289 Evaporative emission (EVAP) canister purge valve tube
3 9E499 EGR system module vacuum supply hose
4 6K817 PCV tube
5 N806154 Throttle body (TB) spacer bolt (5 required)
6 9A589 TB spacer
7 9L437 TB spacer gasket
