Oil Pressure Switch Connector - C103

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

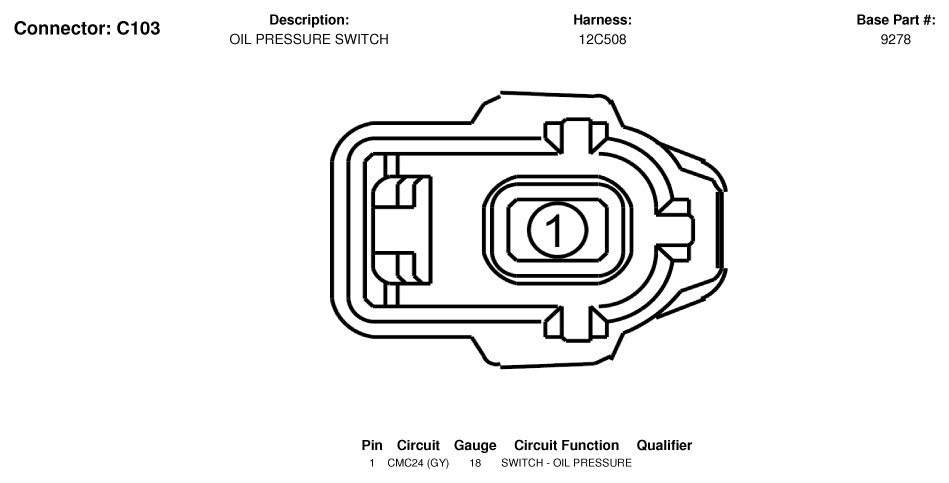

Fig 1: Oil Pressure Switch Connector End View (C103)
G07335968Courtesy of FORD MOTOR CO.
