Evaporator Outlet Line: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

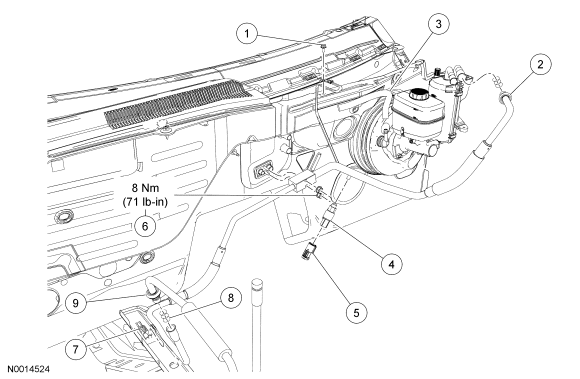

| Item | Part Number | Description |
|---|---|---|
| 1 | 54042A06 | Body ground strap bolt |
| 2 | - | Suction accumulator inlet fitting (part of 19835) |
| 3 | 9C482 | Brake booster vacuum hose |
| 4 | 19E561 | A/C cycling switch |
| 5 | - | A/C cycling switch electrical connector (part of 12B637) |
| 6 | W701838 | Evaporator fitting nut (2 required) |
| 7 | 9A317 | Evaporator inlet line clip |
| 8 | 19E889 | O-ring seal (8 required) |
| 9 | - | Evaporator inlet line fitting (part of 19835) |
