Air Inlet Duct: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

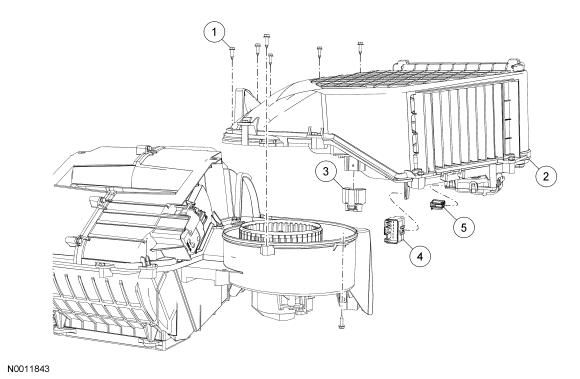

| Item | Part Number | Description |
|---|---|---|
| 1 | W701696 | Air inlet duct screw (7 required) |
| 2 | 19A648 | Air inlet duct |
| 3 | - | Blower motor resistor electrical connector (part of 18574) |
| 4 | - | Heater core and evaporator core housing harness electrical connector (part of 18574) |
| 5 | 18574 | Air inlet mode door actuator electrical connector |
