Seat Pressure Sensor Connector - C3042

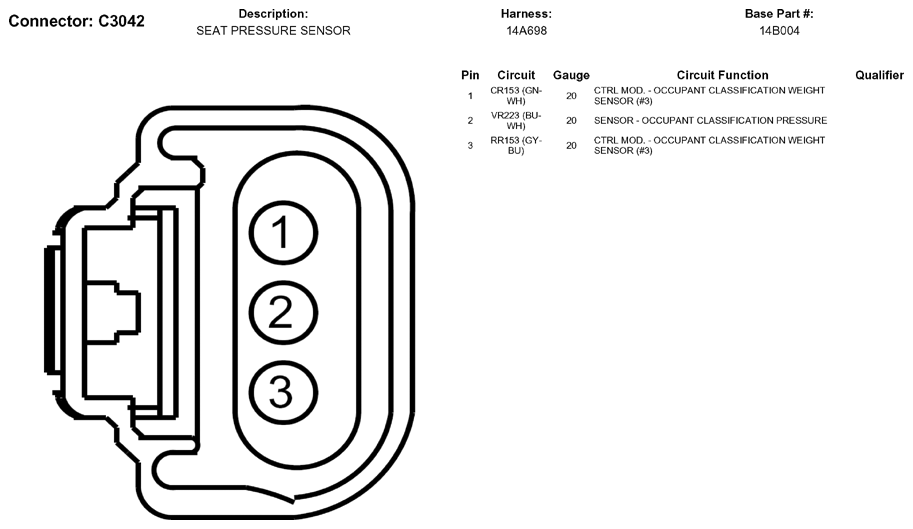

Fig 1: Seat Pressure Sensor Connector End View (C3042)

G05790142

Courtesy of FORD MOTOR CO.
