Right Rear Window Adjust Switch Connector - C801

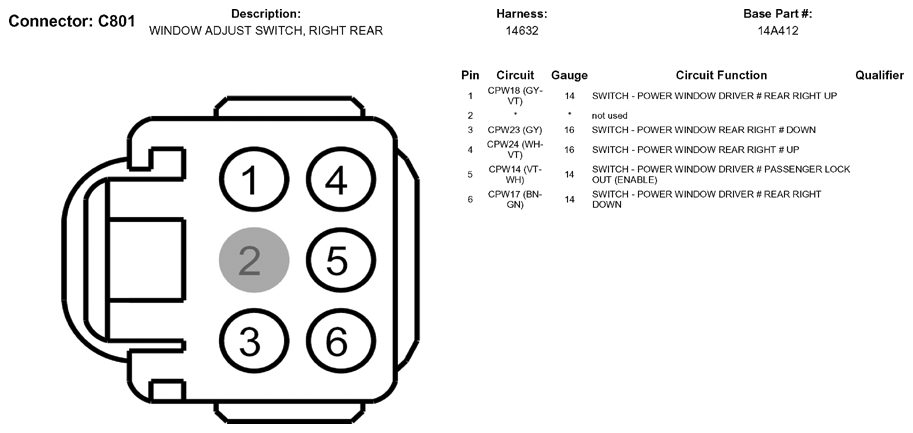

Fig 1: Right Rear Window Adjust Switch Connector End View (C801)

G05790059

Courtesy of FORD MOTOR CO.
