Power Liftgate Chime Connector - C4186

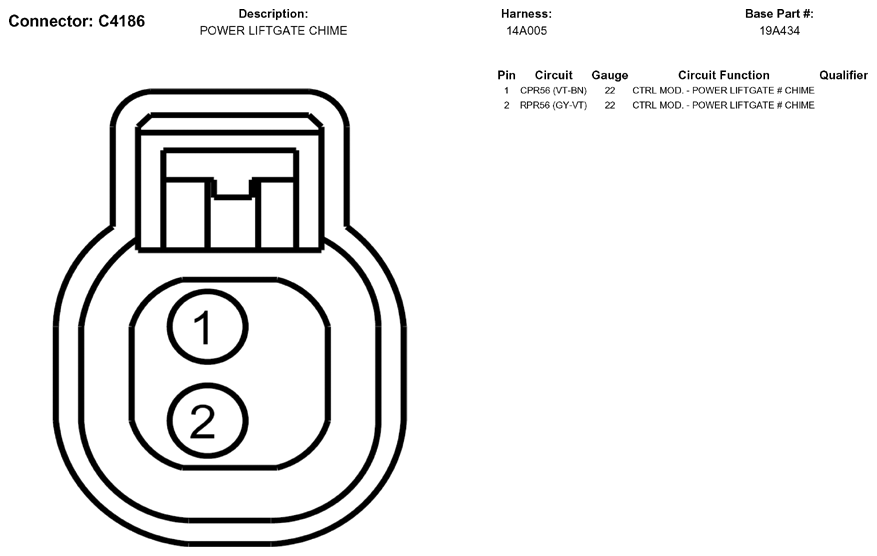

Fig 1: Power Liftgate Chime Connector End View (C4186)

G05790204

Courtesy of FORD MOTOR CO.
