Passenger Side Window Adjust Switch Connector - C604

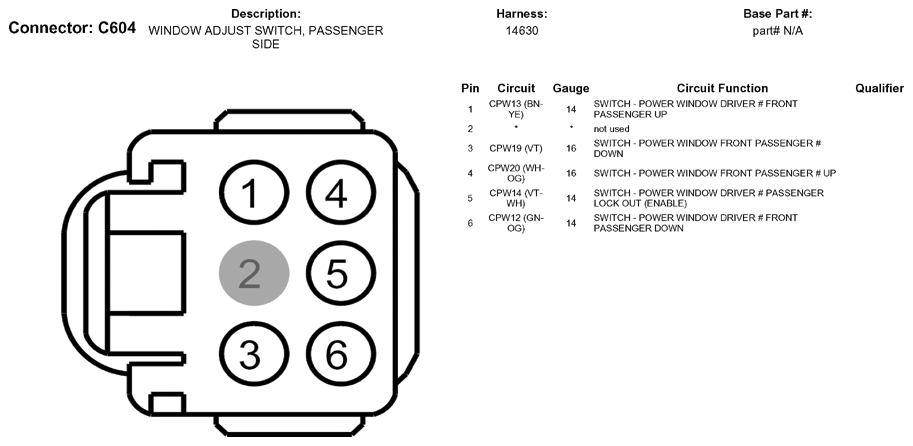

Fig 1: Passenger Side Window Adjust Switch Connector End View (C604)

G05790045

Courtesy of FORD MOTOR CO.
