Inline Connector End View - C314

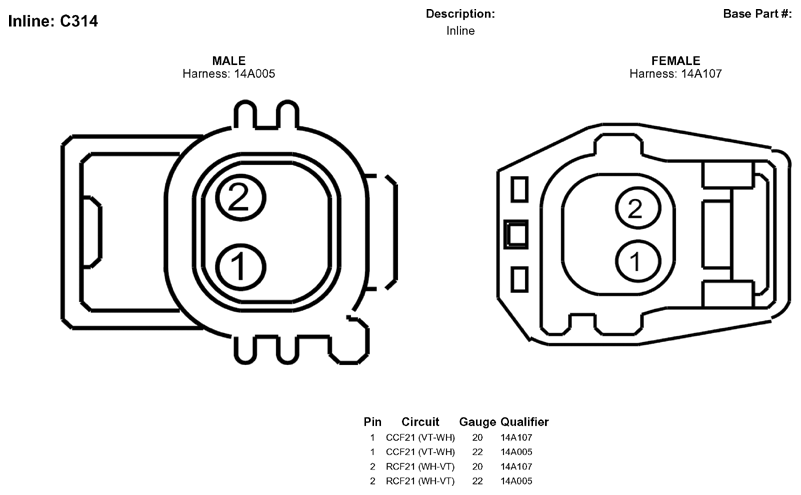

Fig 1: Inline Connector End View (C314)

G05789983

Courtesy of FORD MOTOR CO.
