Crankshaft Position Sensor Connector - C101

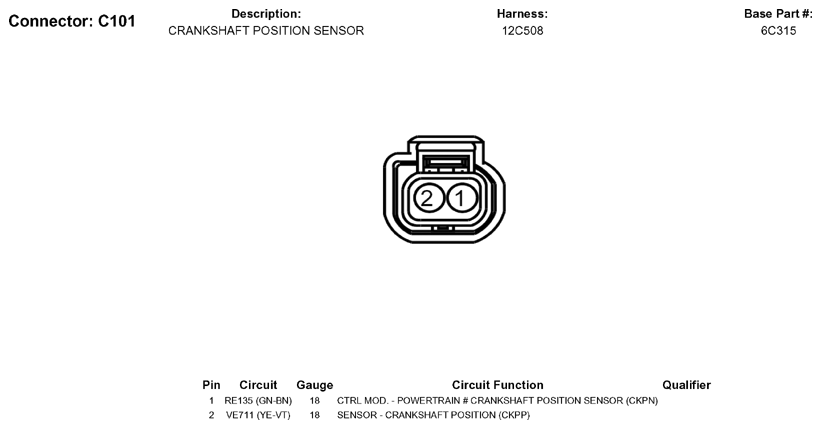

Fig 1: Crankshaft Position Sensor Connector End View (C101)

G05789894

Courtesy of FORD MOTOR CO.
