Adjustable Pedal Switch Connector - C2235

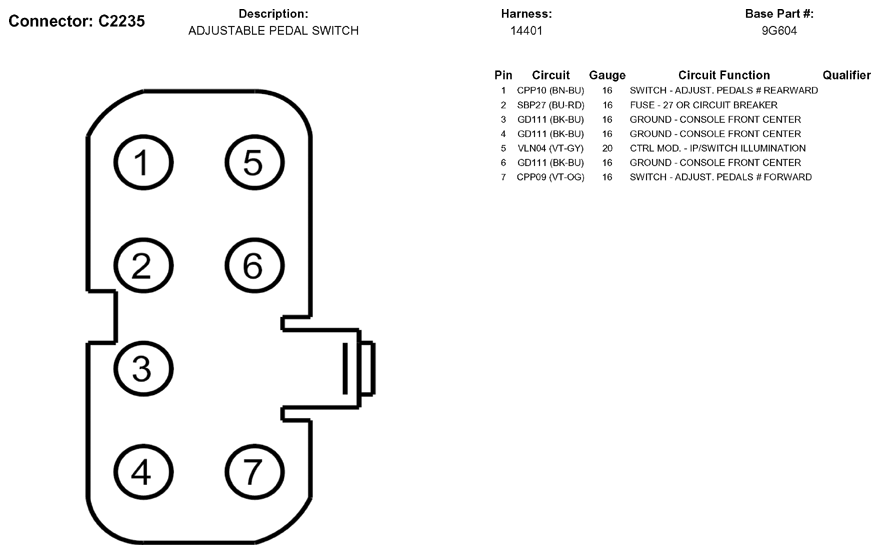

Fig 1: Adjustable Pedal Switch Connector End View (C2235)

G05790122

Courtesy of FORD MOTOR CO.
