Subframe Bushings - Rear Differential, Front: Notes

SPECIAL TOOLS

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Remover/Installer, Rear Drive Unit (RDU) Bushing (70 mm)	204-616
Courtesy of FORD MOTOR CO.	Remover/Installer, Rear Drive Unit (RDU) Bushing (60 mm)	204-618

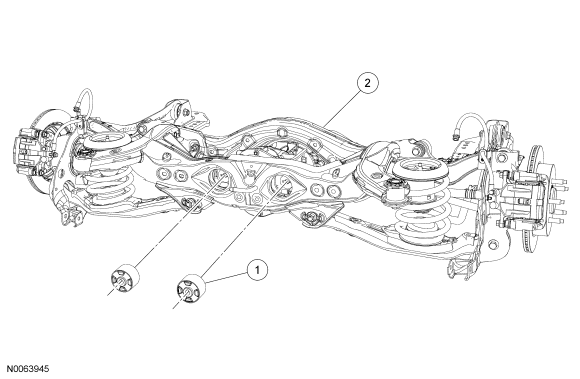

Fig 1: Exploded View Of Subframe Bushings - Differential, Rear

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	50K67	Rear drive unit bushing (2 required)
2	-	Rear subframe
