Power Steering Pump to Steering Gear Pressure Line: Notes

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

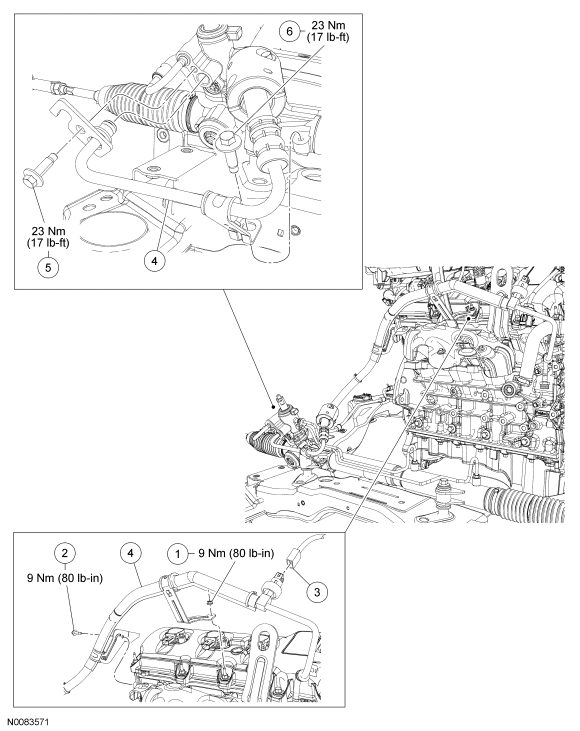

Fig 1: Power Steering Pump to Steering Gear Pressure Line Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520100	Pressure line bracket-to-valve cover stud nut
2	W506413	Pressure line bracket-to-rear engine bolt
3	-	Power Steering Pressure (PSP) switch electrical connector (part of 14B060)
4	3A719	Pressure line
5	W712679	Power steering line clamp plate bolt
6	W712679	Pressure line bracket-to-steering gear bolt
