Power Steering Fluid Cooler: Notes

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

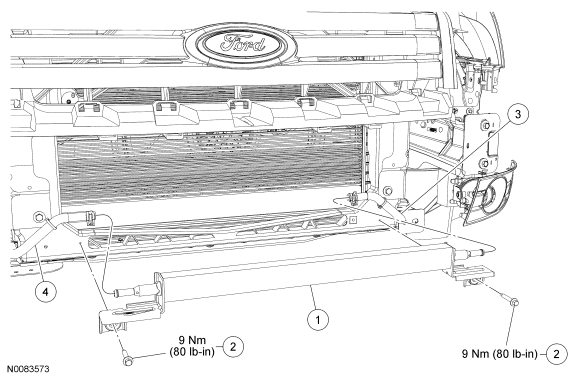

Fig 1: Power Steering Fluid Cooler With Torque Specifications

GF0045930

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3D746	Power steering fluid cooler
2	W500300	Power steering fluid cooler bolts (2 required)
3	3A713	Steering gear-to-fluid cooler return hose
4	3493	Power steering fluid cooler-to-fluid reservoir hose
