Parking Aid Module Connector - C3267

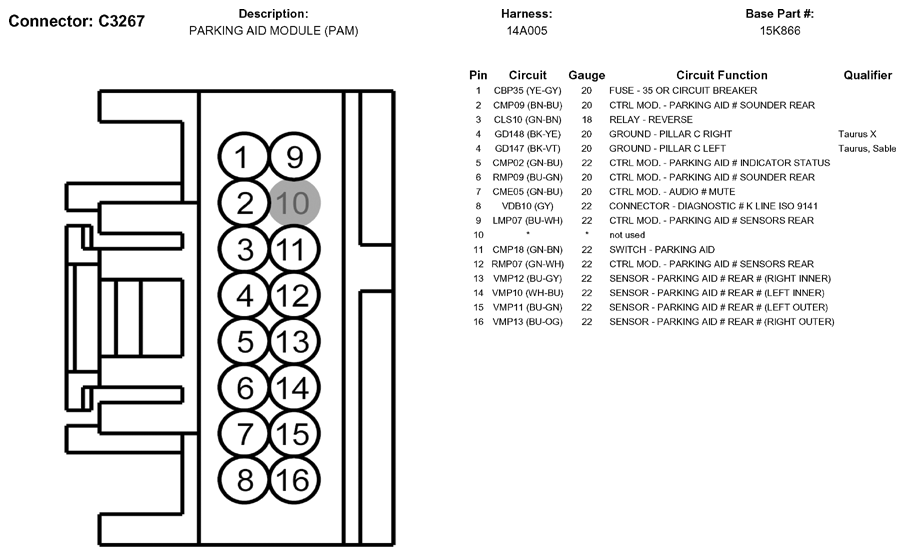

Fig 1: Parking Aid Module Connector End View (C3267)

G05790175

Courtesy of FORD MOTOR CO.
