Front Heated Seat Module Connector - C3304

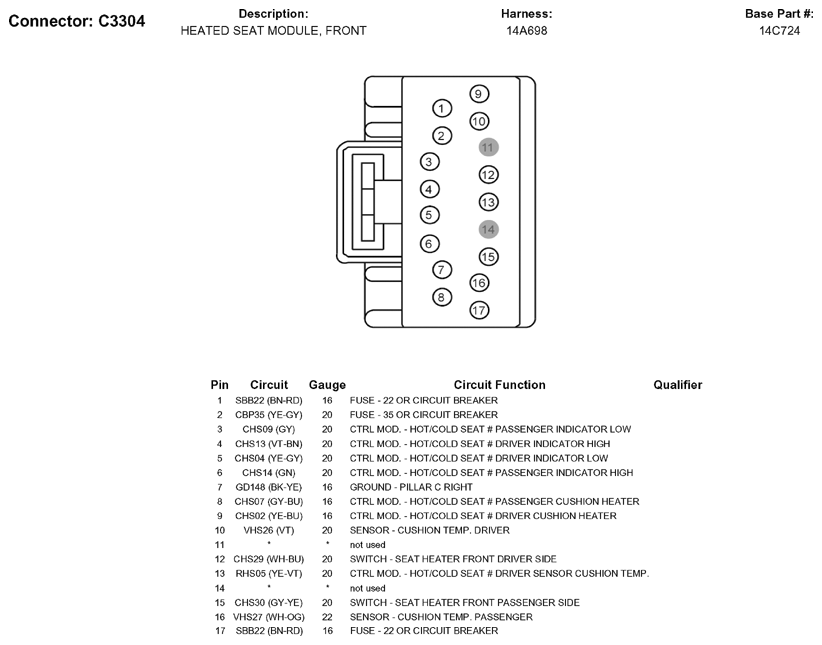

Fig 1: Front Heated Seat Module Connector End View (C3304)

G05790184

Courtesy of FORD MOTOR CO.
