Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

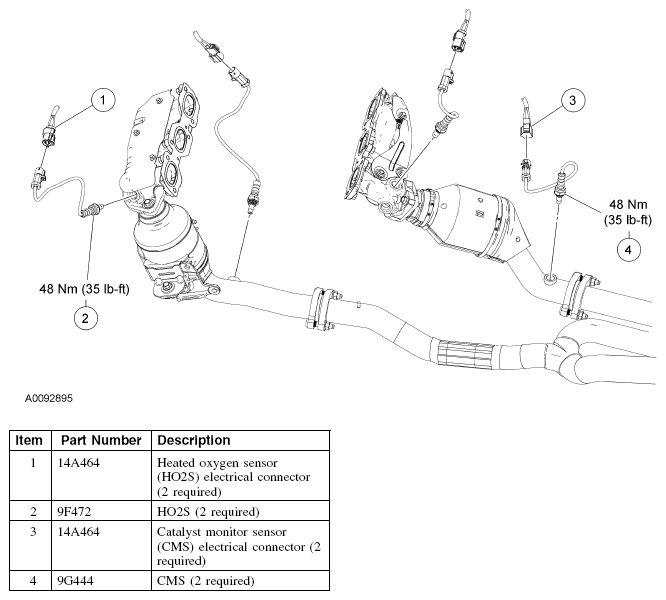

Fig 1: Exploded View Of Heated Oxygen Sensor HO2S & Catalyst Monitor Sensor Components With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
