Air Conditioning (A/C) Cycling Switch: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

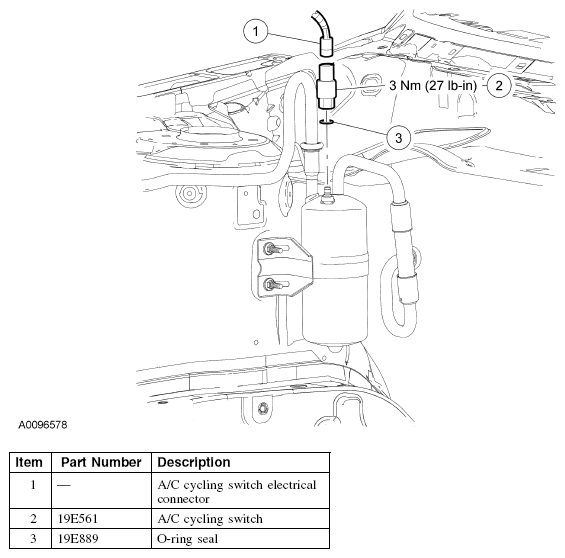

Fig 1: Air Conditioning (A/C) Cycling Switch Replacement Components With Torque Specifications
G04621588Courtesy of FORD MOTOR CO.
