Seat adjust switch, passenger side front: Schematic

WARNING: This page is about a different car, the 2006 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

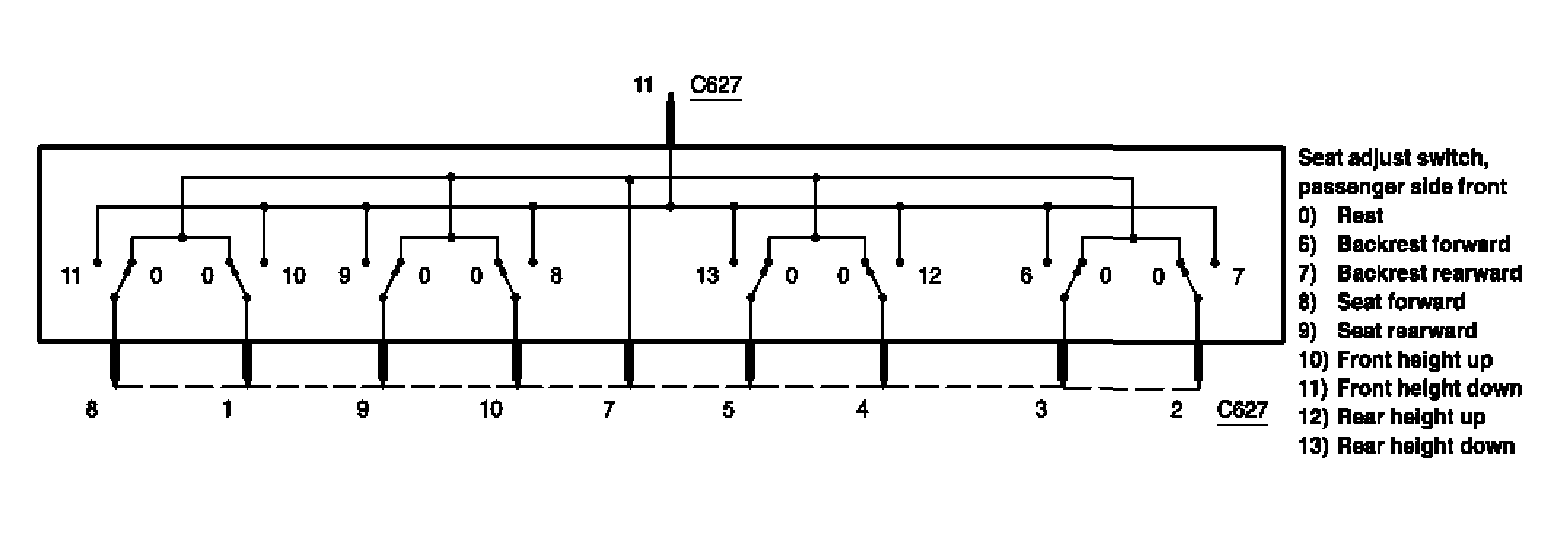

Fig 1: Seat Adjust Switch, Passenger Side Front - Schematic Diagram
G04598231Courtesy of FORD MOTOR CO.
