Register - RH, MKZ: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

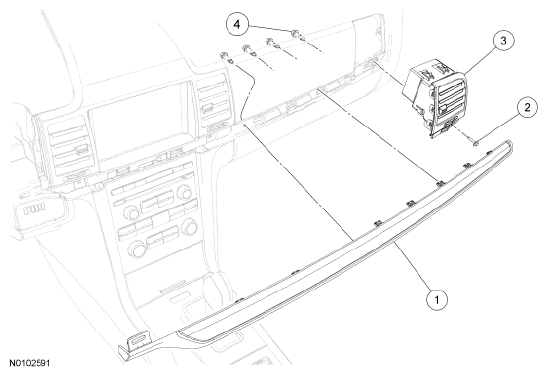

Fig 1: Identifying Instrument Panel Register Components - RH (MKZ)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54044A90	RH instrument panel finish moulding
2	-	RH register screw
3	19893	RH register
4	W707607	RH instrument panel finish moulding screw (4 required)
