Section 1733 (OEM Connector End Views)
>>
Connector Views
>>
Subwoofer Connector
>>
Subwoofer Connector End View - C3020
Subwoofer Connector End View - C3020
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

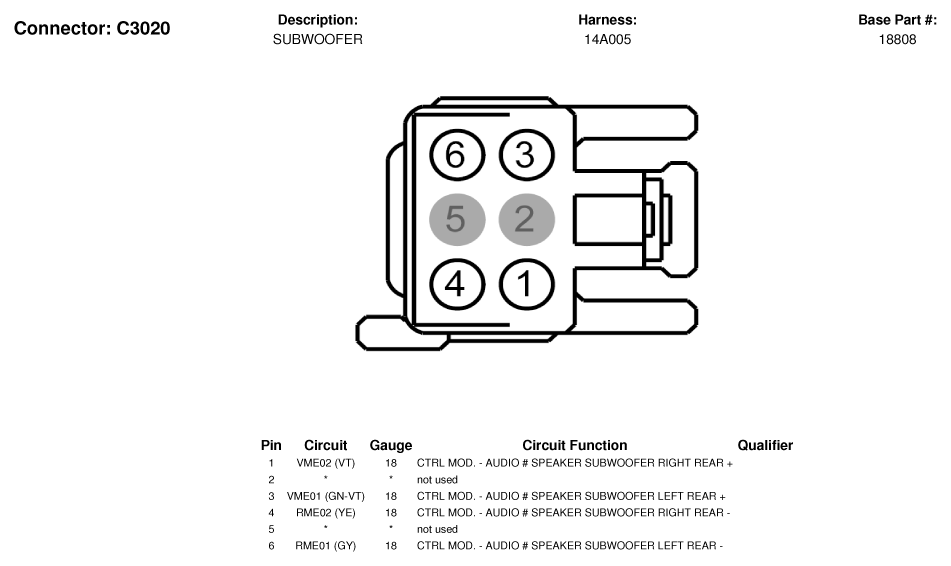

Fig 1: Subwoofer Connector End View (C3020)
Courtesy of FORD MOTOR CO.
