Steering Wheel Rotation Sensor Connector - C226

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

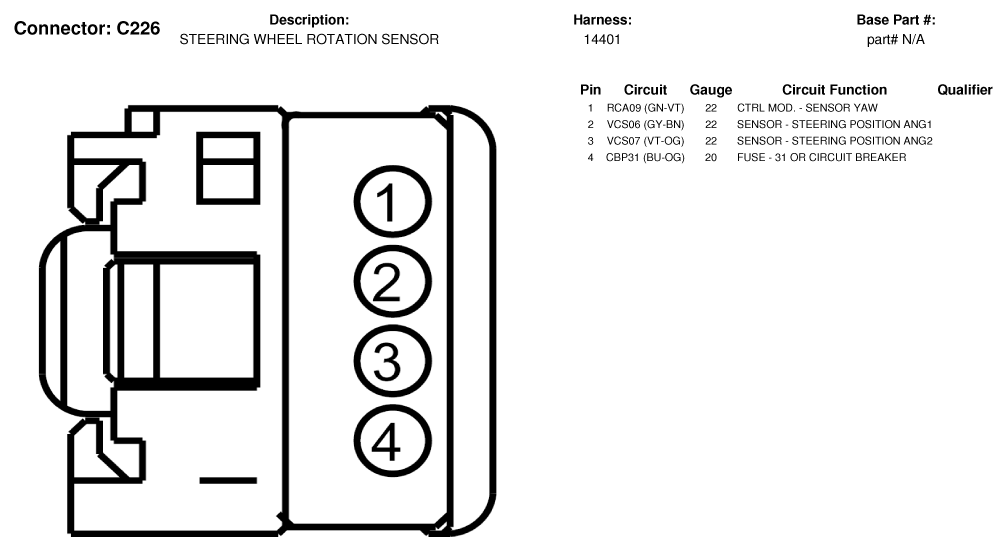

Fig 1: Steering Wheel Rotation Sensor Connector End View (C226)
G07336039Courtesy of FORD MOTOR CO.
