Smart Junction Box Connector End View - C2280F

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

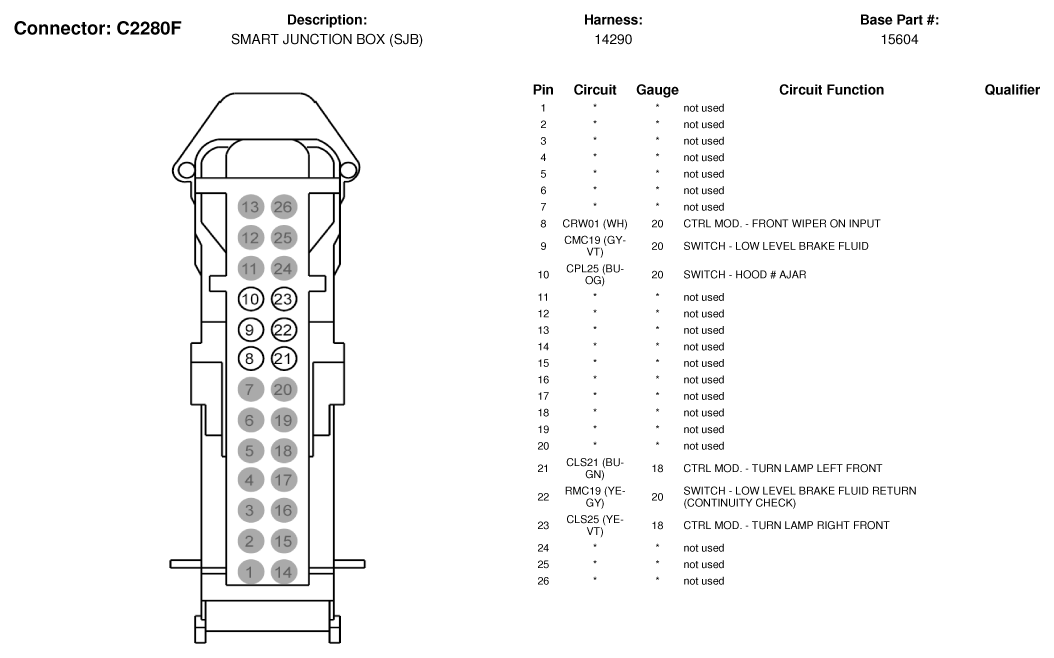

Fig 1: Smart Junction Box Connector End View (C2280F)
G07336264Courtesy of FORD MOTOR CO.
