Roof Opening Panel Module Connector - C921

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

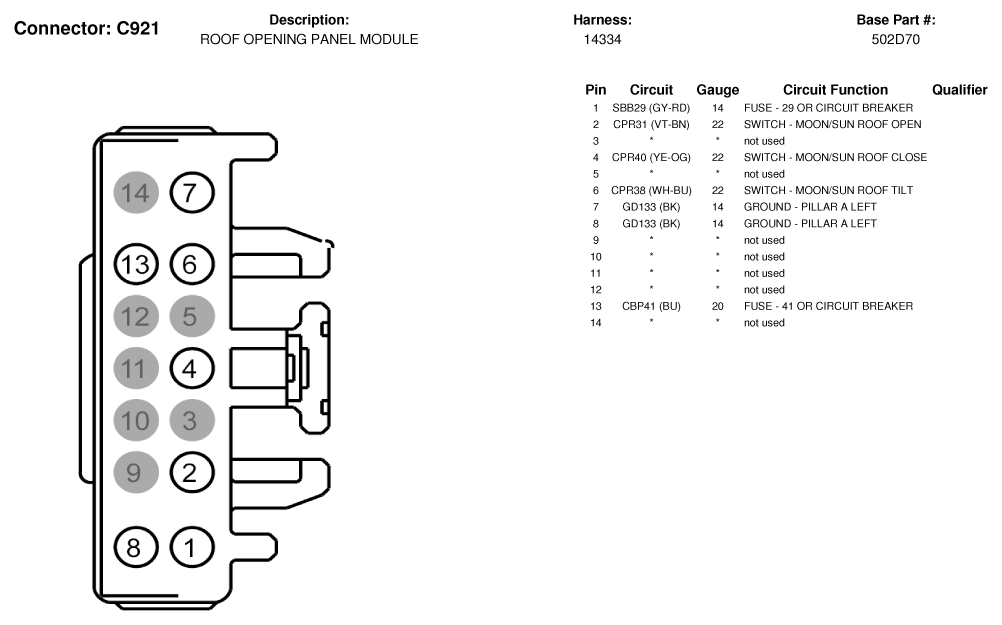

Fig 1: Roof Opening Panel Module Connector End View (C921)
G07336175Courtesy of FORD MOTOR CO.
