Section 1733 (OEM Connector End Views)
>>
Connector Views
>>
Right Front Wheel Speed Sensor Connector - C160
Right Front Wheel Speed Sensor Connector - C160
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

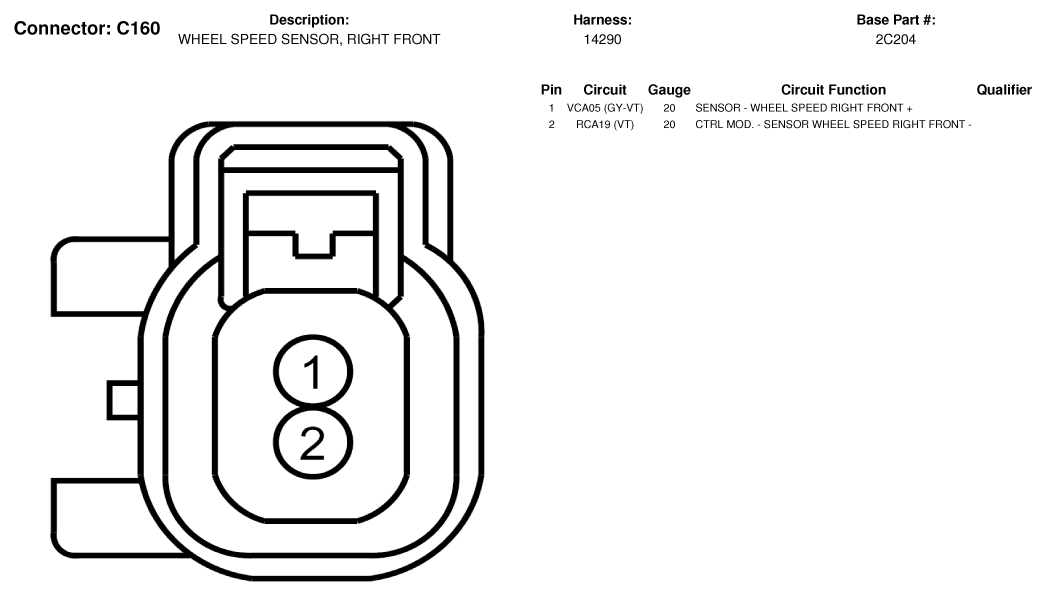

Fig 1: Right Front Wheel Speed Sensor Connector End View (C160)
Courtesy of FORD MOTOR CO.
